Product Description

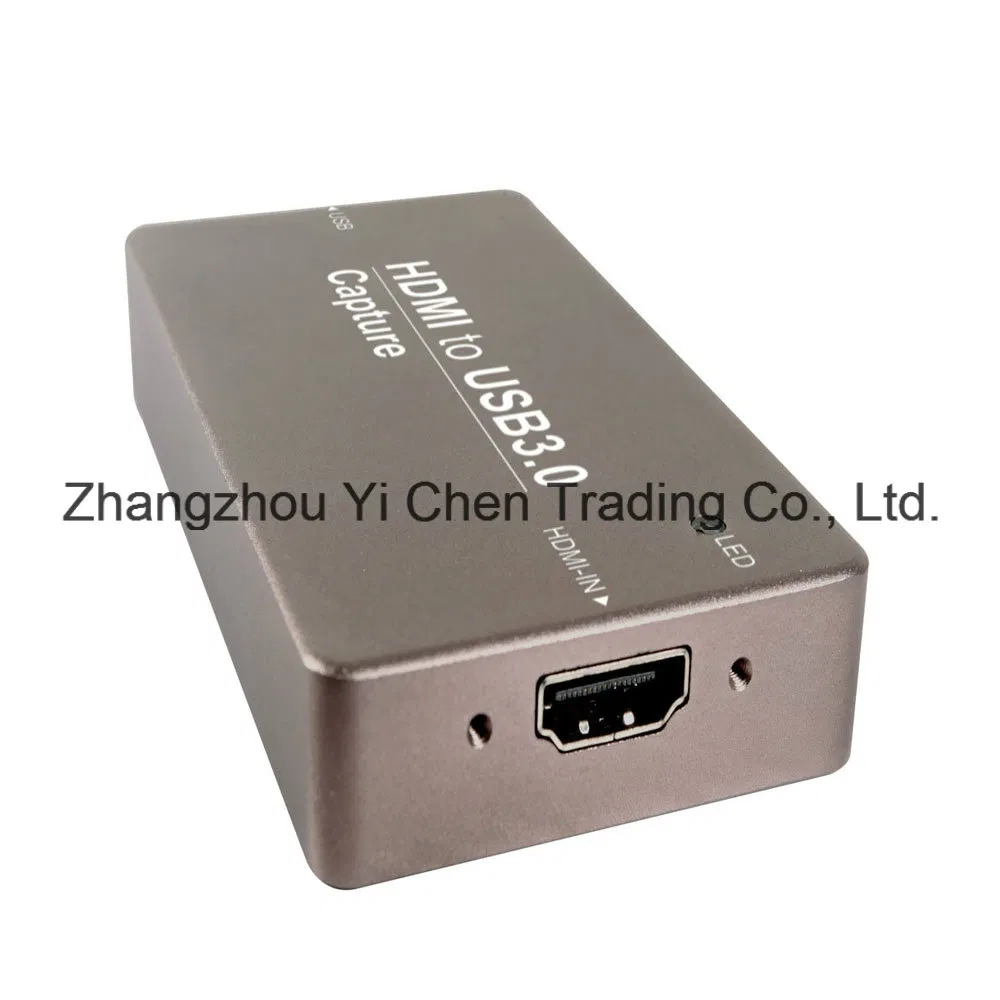

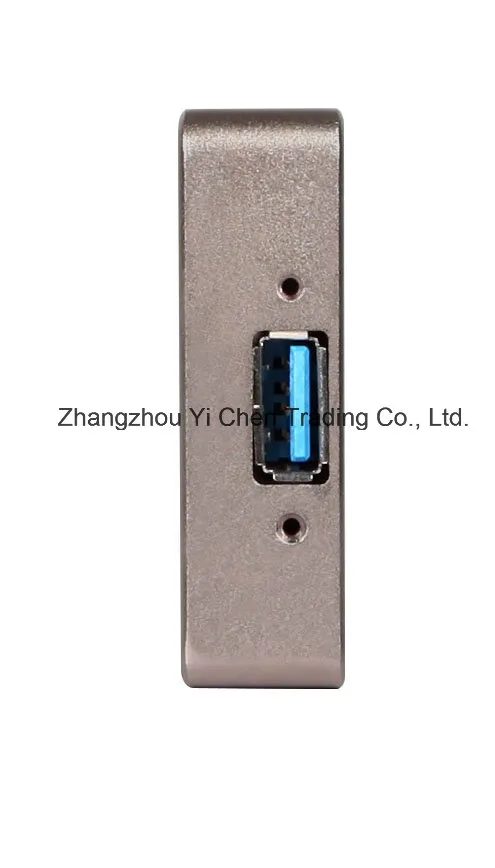

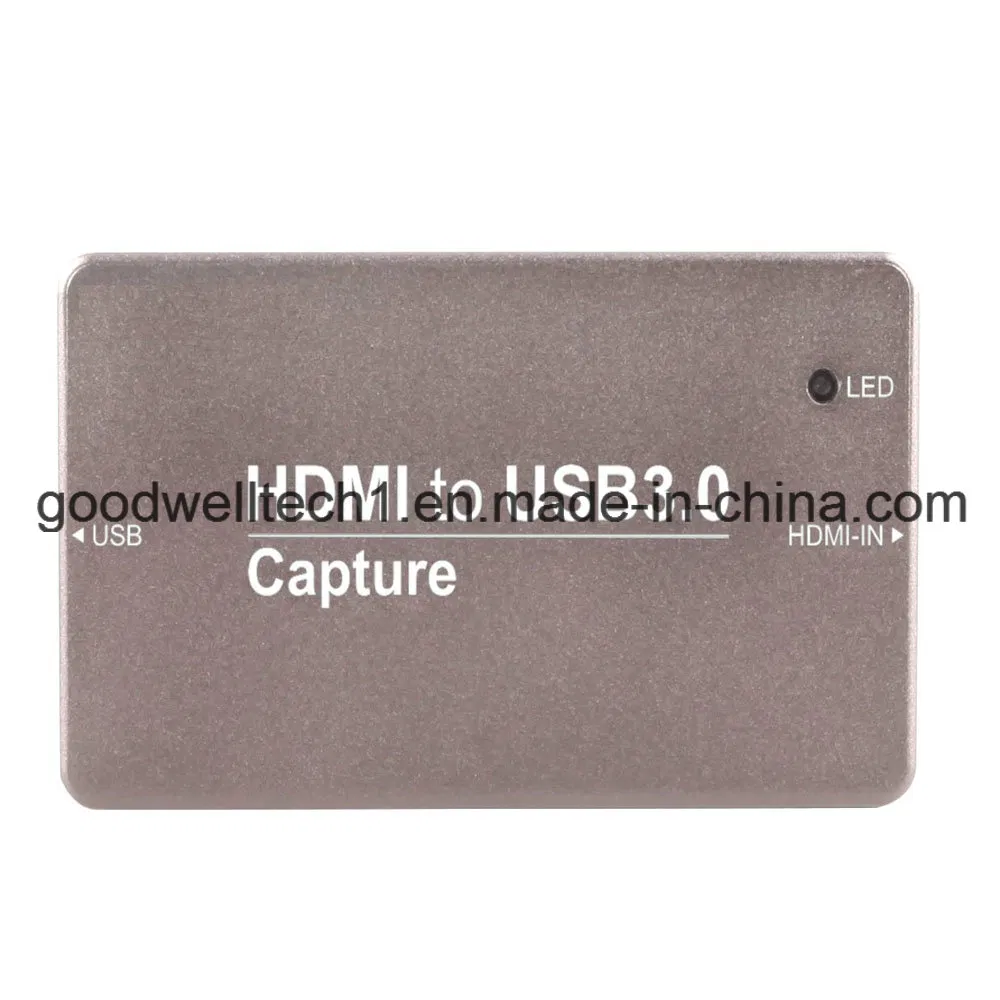

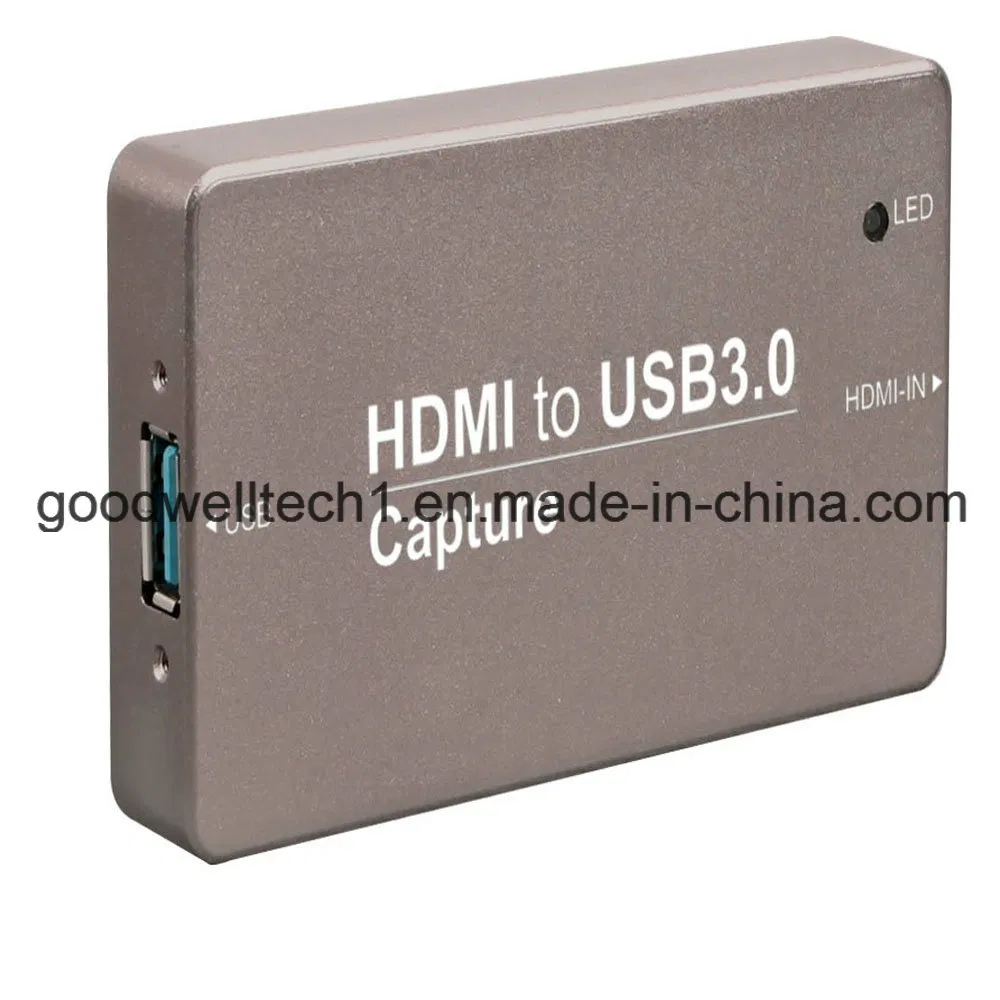

New Pocket Size Metal Case HDMI to USB 3.0 Video Capture Card Support Windows Linux Android OS

Introductions:

The HDMI to USB3 Capture is the simplest and most powerful solution to get your HDMI video and audio into your computer. No drivers to install and works with most software on PC and Mac allowing live video streaming, webcasting or video conferencing to Skype, Facebook Live, Youtube Live, Livestream, UStream, Dacast, Wowza Cloud and many more.The HDMI to USB3 Capture can capture various HD video sources with resolutions up to 1920x1200p @ 60fps. The HTU3.0 adopts the USB 3.0 interface, which can realize high-speed transmission.

The HDMI to USB3 Capture is the easies and most affordable HDMI capture device on the market. It is a trued plug and play device requiring no drivers for its use.Extremely small, you can carry not anywhere giving you professional creative video capture on the go.Get power from the PC directly and has no need of extra power adapter, which enables it to be carried easily.

Product Features:
1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn't need to install a driver, and it is truly PnP.
6. It is compatible with Windows, Linux, OS X operating systems.

Advanced Features:
1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The process of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. It supports the image adjustment features, like brightness, contrast, hue and saturation.
6. Multiple dongles can be used on one PC.
7. The firmware can be updated.

Specifications :


Model No.	HTU 3.0
Host Interface	USB3.0, 300-350MB/s throughput (USB2.0, 40MB/s throughput)
Input Interface	1x HDMI interface
HDMI Video Input	1 x 1080p/60Hz HD HDMI
HDMI Audio Input	1 LPCM audio signal
HDMI Input format	It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Input Formats	Resolutions: 640x480/720x480/720x576/ 768x576/800x600/1024x768/1280x720/1280x800/ 1280x960/1280x1024/1368x768/1440x900/ 1600x1200/1680x1050/1920x1080/1920x1200/ 640x360/856x480/960x540/1024x576/ Frame Rate: 25/29.97/30/50/59.94/60 fps
Output Formats	Resolutions: 640x480/720x480/720x576/ 768x576/800x600/1024x768/1280x720/1280x800/ 1280x960/1280x1024/1368x768/1440x900/ 1600x1200/1680x1050/1920x1080/1920x1200/ 640x360/856x480/960x540/1024x576/ Frame Rate: 25/29.97/30/50/59.94/60 fps
Video Sampling Rate	HDMI: 165MHz
Audio and Video Capture	It meets the standards of UVC (USB video class) and UAC (USB audio class)
Output Color Space	YUY2, RGB24
Support OS	(x86 and x64 versions): Windows 7 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above) Android
Software Compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X) etc.
Power Consumption	≤2.5W
Working Temperature	0ºC ~ 50ºC
Storage Temperature	-20ºC ~ 70ºC
Storage Humidity	5%-90%
Unit Size	97.8L×56H×17.6D (mm)
Unit Weight	120g
Standard Accessories	1× USB 3.0 Cable, 1x Instruction Manual
