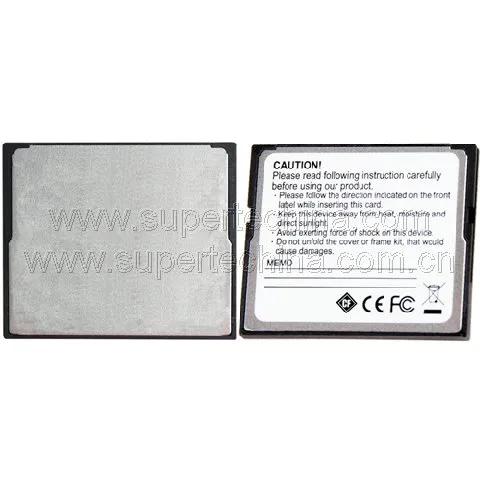

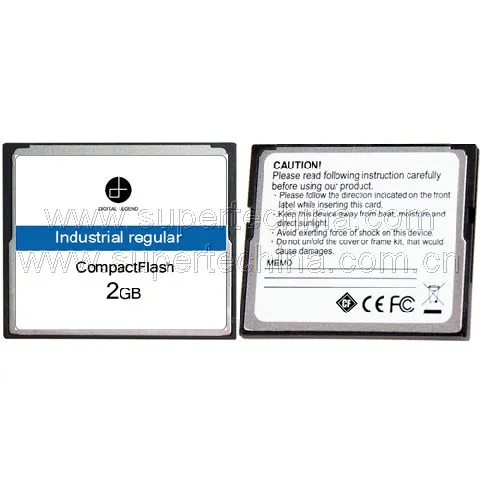

Industrial Regular CF Memory Card (S1A- 7001D )
Industrial regular CF card/Industrial regular compact flash cardSpecification:SLC or MLC original flash chipsStrong compatibility controllers and solutionIndustrial production procedureSevere quality control and serious testing requiredCapacity: 64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/......
Send Inquiry
Product Description
Industrial regular CF card/Industrial regular compact flash card
Specification:
SLC or MLC original flash chips
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Capacity: 64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GB
Compliant with Compact Flash specification
Compatible with standard CF socket device
Connector pin: 50 pins
Support UDMA
Operating Modes:
--PC Card Memory Mode
--PC Card I/ O Mode
--True-IDE Mode Non-volatile solid-state
Support firmware ISP(in system programming) function, firmware upgradeable
Compatibility: Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot
Technique parameters:
Humidity: 8% to 95%, non-condensing
MTBF: >1, 000, 000 hours
Low Power Consumption (<50mA)
Clock speed: 20Mhz max
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for operating: 2.7~3.6V
Storage temperature: -40° C - 85° C
Operating temperature: -25° C - 85° C
Variable clock rate: 0~25MHz
Vibration: 15Gs peak-to-peak
Max Shock: 1, 000g/Max
Specification:
SLC or MLC original flash chips
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Capacity: 64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GB
Compliant with Compact Flash specification
Compatible with standard CF socket device
Connector pin: 50 pins
Support UDMA
Operating Modes:
--PC Card Memory Mode
--PC Card I/ O Mode
--True-IDE Mode Non-volatile solid-state
Support firmware ISP(in system programming) function, firmware upgradeable
Compatibility: Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot
Technique parameters:
Humidity: 8% to 95%, non-condensing
MTBF: >1, 000, 000 hours
Low Power Consumption (<50mA)
Clock speed: 20Mhz max
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for operating: 2.7~3.6V
Storage temperature: -40° C - 85° C
Operating temperature: -25° C - 85° C
Variable clock rate: 0~25MHz
Vibration: 15Gs peak-to-peak
Max Shock: 1, 000g/Max
| Certificate: | CE, FCC, ROHS |
| Quality warranty term: | 5 years |
| Payment term: | 30% deposit and balance before shipment or irrevocable LC at sight |
| Time of delivery: | 5-15 days upon confirming the sample |
| Port of delivery: | Shanghai, H.K., Shenzhen |
