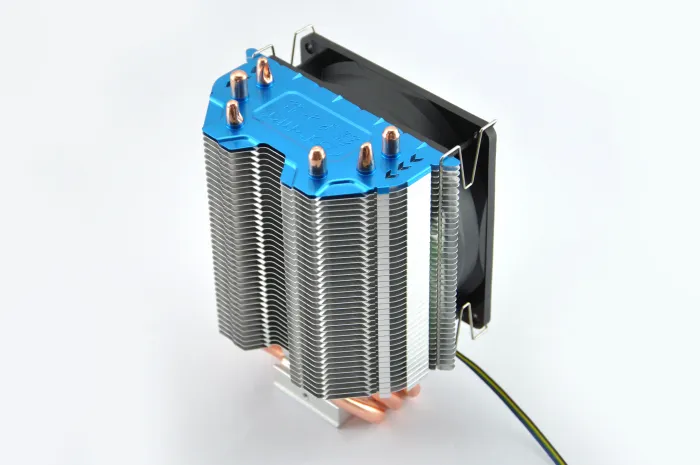

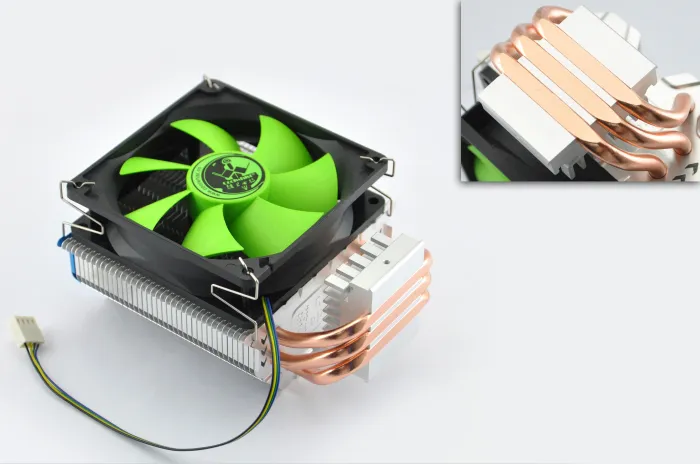

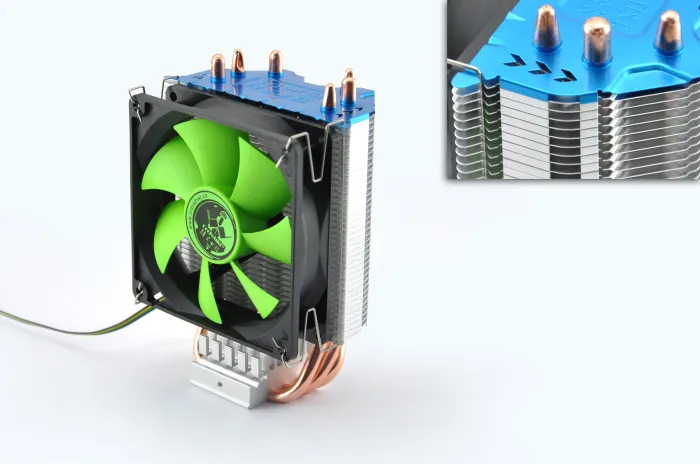

3 Heatpipes CPU Cooler for Intel LGA 1155 /2011 and AMD

Product Description

Production Description

1. Size: 105*70*130H mm
2. Material: Aluminum heatsink
3. Fan: 92*92*25mm
4. Heatpipe: 6mm*3pcs
5. Rated voltage: 12V
6. Rated current: 0.17A
7. Connector power: 4Pin with PWM function
8. Speed: 600~3000RPM ± 10%
9. Bearing: Hydraulic bearing
10. Noise: 27 dBA

CPU support:
LGA 775,LGA 1150/1151/1155/1156,LGA 1366, LGA 2011...
Core i7/i5/i3
AMD Socket
AM1/AM3+/AM3/AM2+/AM2/940/939/754

Our Services

Product type	1. extruded heat sink 2. heat pipe heat sink 3. skiving fin heat sink 4. stamping heat sink 5. die casting heat sink 6. precision CNC machining heat sink 7. forging heat sink 8. heat pipe 9. cooling fan: DC computer case fan, AC fan, EC fan 10. Thermo Electric Cooler(TEC), TEM
Process	extrusion, skiving fin, stamping, die casting, precision CNC machining, drilling, milling, bending, soldering, etc
Surface finish	anodizing, electrophoresis, nickel plating, sandblasting, power plating, wire drawing, polishing, anti-oxidation coating, etc.
Application	1. Computer fileds: computer mainboard, PC, IPC, Server, PCTV, Router, Power supply (CPU cooler, VGA cooler, Cooling fan) 2. Home appliances: pico projector, electronic refrigerator, red wine cooler, LASER TV, LCD TV, LED panel, Sound, Air condition, induction cooker, etc. 3. LED lighting: stage light, high bay light, down light, street light, automobile lamp ,etc. 4. Security fields: security cameras, infrared light cameras. 5. Machines: Industry/Medical/Military machines

Packaging & Shipping

Delivery	25-30 days after confirming all inforamtions
Packaging	Standard export package, we can also accept other requirments from clients.
Shipping	1.The sample will be shipped by express, like FEDEX, DHL, UPS and EMS. And the freight should be paid by clients. 2. FOB Shenzhen or HongKong for mass production. the freight will deal with you for the concrete condition
Payment	1.T/T and L/C,Paypal 2.high value sample will be charged, and will be returned to you after confirming the mass production. 3.low value sample is free, but the freight should be covered by you
